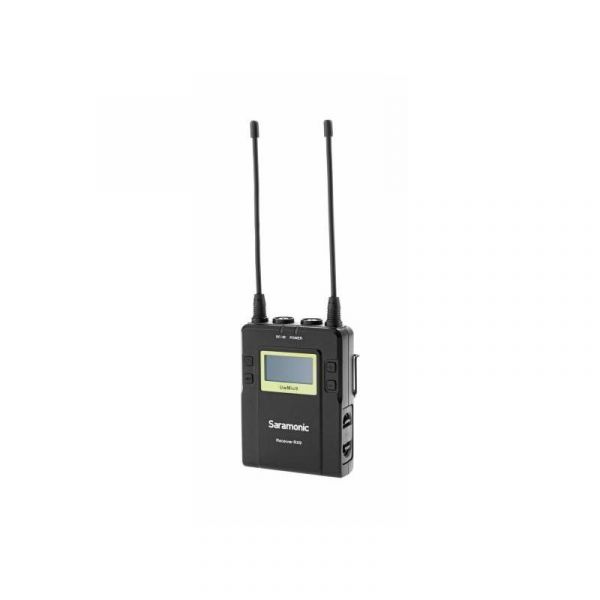

Receiver Saramonic RX9 for UwMic9 wireless audio system

Description

The Saramonic RX9 is a receiver for the UwMic9 wireless sound transmission system.

The UwMic9 system is characterised by its versatility and reliability. The ability to transmit audio wirelessly between a wide range of devices will be appreciated by camera operators, reporters and vloggers. The system allows devices to work in two groups, on 96 transmission frequencies.

The receiver has two mini Jack (3.5 millimetre) TRS inputs for connection to a signal recording device and headphone listening.  The signal input is equipped with a lock to prevent accidental cable disconnection.

The receiver housing is made of high-quality aluminium. The easy-to-read LCD display and control buttons allow comfortable use of the device even when wearing gloves. Intuitive menus and synchronisation functions simplify use and speed up the system. The device is powered by two AA batteries.

The common elements of the system can be transmitters in various configurations (not included in the receiver itself), allowing tracks to be sent simultaneously to two audio channels.

In addition to the receiver, the kit includes a clip for attaching it to a belt and cables: XLR/mini Jack 3.5 mm TRS and mini Jack 3.5 mm TRS/ mini Jack 3.5 mm TRS

Specifications

• number of transmission channels: 96
• number of groups: A and B
• operating frequencies: 514 MHz – 596 MHz
• reference deviation: +/- 5 kHz
• signal-to-noise ratio (SNR): 70 dB or more
• power supply: 2 AA batteries
• weight: 260 g
• dimensions: 6.4 x 8.7 (+ antenna 10.5 cm) x 2.5 cm

Compatibility

• The UwMic9 system:
  • Saramonic TX9
  • Saramonic HU-9
  • Saramonic TX-XLR9

Contents of the kit

• RX9 receiver
• belt clip
• XLR cable/mini Jack 3.5 mm TRS cable
• mini Jack 3.5 mm TRS cable
