Controller Aputure DEC LensRegain with adapter – Canon EF / Micro 4/3

Description

The Aputure DEC LensRegain is an advanced controller that allows the use of Canon EF lenses with cameras equipped with the Micro 4/3 bayonet mount . The device not only allows remote control of aperture settings and focus points, but also adjusts the image projected by the lens to the dimensions of the smaller sensor.

The core element of the DEC LensRegain system is the Canon EF – Micro 4/3 bayonet adapter. A special optical system which focuses light from the lens allows the focal length multiplier effect to be reduced. This makes it much more convenient to use full-frame lenses on Olympus and Panasonic mirrorless cameras.

The adapter, in combination with the controller, offers remote control of the lens operation, its aperture value and focus settings. Thanks to these functions, the camera can be mounted in places that are difficult for the operator to reach: on a tap, slider or drone, while maintaining a high level of operating comfort.

System operation is controlled by a practical remote control. The ergonomic layout of the function buttons, dial and two-way joystick makes working with the device comfortable and intuitive. The tripod mount and included jaws allow the remote to be mounted in a convenient location: on a tripod, rig or gimbal. The satin finish improves grip confidence.

Both the remote and the controller are equipped with clear LCD displays showing the current settings of the adapter.

In addition to the controller, the kit also includes a set of connection cables, mounting jaws for the remote control and a sturdy carrying case to accommodate the entire system.

Specification

• Dimensions:
  • bayonet adapter: 7 x 8 x 2.3 cm
  • controller: 4.2 x 11.8 x 4 cm
  • pilot: 4.8 x 15.6 x 6.8 cm
  • case: 29 x 23.5 x 12 cm
• Weight:
  • bayonet adapter: 190 g
  • controller: 100 g
  • pilot: 170 g
  • whole kit in case: 1930 g
• Magnification scale: 0.75x
• Built-in battery capacity:
  • adapter: 1400 mAh
  • pilot: 2600 mAh
• Operating time per charge:
  • adapter: up to 10 h
  • pilot: up to 48 h
• Radio communication frequency: 2.4 GHz
• Wireless communication range: up to 100 m

Compatibility

• Lenses with Canon EF mount
• Micro 4/3 mount cameras

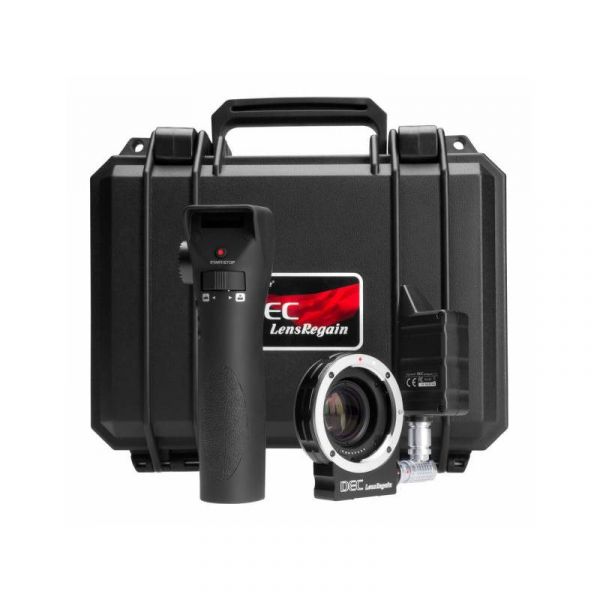

Kit contents

• bayonet adaptor
• controller
• pilot (handle)
• connection cable set
• mounting bracket
• decal for the back of the adapter
• decal for the front of the adapter
• protective case
